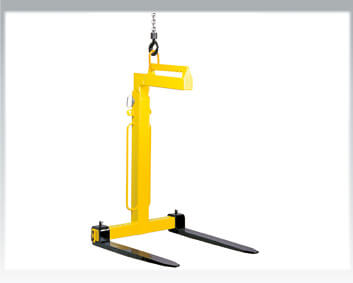

Camlok® TKG-VH ‘Manual’ balance crane forks

WLL 1000 – 5000 kg

The TKG-VH range of crane forks are equipped with adjustable tines and have an adjustable height mast. The balancing system engages when the master link is manually hooked into the appropriate notch.

  • Factor of safety 4 : 1
  • Maintenence free.
  • Highly visible safety colour.
  • For transporting rings or coils, simply push fork tines together.
  • Easily adjustable tines for all pallet sizes.
  • Supplied with chain for securing the load.
Tigrip® Crane forks TKG vh

DOWNLOADS:
Brochure TKG-VH

Info

The load must not exceed the fork length.



Technical data Camlok® TKG-VH ‘Manual’ balance crane forks:

ModelWLLWeight
kgkg
TKG1.0vh0 - 1000128
TKG2.0vh0 - 2000193
TKG3.0vh0 - 3000248
TKG5.0vh0 - 5000388
