ZWW-L ATEX Wall-mounted rack and pinion jacks

Capacity 600 -1000 kg

The rack and pinion jack is suitable for lifting, lowering, pulling and pushing, for horizontal displacement, supporting, adjusting or fixing of heavy components or whole appliances and equipment in hazardous areas.


• Carefully selected materials and a high-grade coating prevent the occurrence of mechanically caused sparks.
• No inadmissible heating of the surfaces due to the intelligent design of the individual parts.
• Equipotential bonding and limited surface area to avoid electrostatic charging.
• The grease-lubricated, self-locking worm gear is set into operation by rotations on the crank. It provides not only for easy movement of the load, but also for a reliable safety in every position.

Application areas

Plant construction, shipping, wastewater treatment plants, chemical industry and food industry.

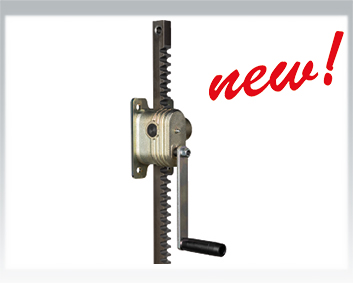

ATEX Zahnstangenwinde new

 ATEX catalogue

Technical Data Wall-mounted rack and pinion jack ZWW-L ATEX:

ModelItem-No.CapacityRack lengthLiftWeight
ZWW-L ATEX 600/80019206918560010008007.0
ZWW-L ATEX 1000/60019206918710008006008.9
