100 – 3000 kg (flat material),

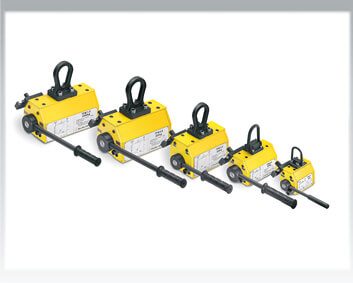

The permanent load lifting magnets TPM are ideal for easy, quick and economical transport of heavy objects made of ferro-magnetic material. Typical operating areas include workshops and warehouses, loading and unloading of machines as well as the construction of jigs and fixtures. The compact design makes the models attractive for a variety of applications.
The load is not mechanically influenced, both flat and round materials can be accommodated. The powerful magnetic body allows a large lifting force at low dead weight. The permanent magnets do not require electric energy and will leave only minor residual magnetism on the material after use.
Switching on and off is done conveniently by flipping a hand lever. When activated, the operating lever is locked by a safety lock, so that unintentional demagnetization is prevented. For safety reasons, we recommend to consider the different conditions like surface condition, material alloy and plate thickness of the materials when selecting the magnets (see table).
In order to achieve a maximum capacity, the contact surface should be bright and free from dirt, oil, grease, scale, corrosion, paint etc.
Technical Data Permanent Lifting Magnets TPM:
|TPM 0,1||N56400001||100||14||2000||50||40 - 300||2000||300||5.3|
|TPM 0,3||N56400002||300||20||2500||150||60 - 300||2500||900||13.5|
|TPM 0,5||N56400003||500||24||3000||250||60 - 400||3000||1500||27.5|
|TPM 0,8||N56400004||800||34||3500||400||60 - 400||3500||2400||52.0|
|TPM 1,0||N56400005||1000||40||3500||500||80 - 400||3500||3000||57.0|
|TPM 2,0||N56400006||2000||55||3500||1000||100 - 400||3500||6000||125.0|
|TPM 3,0||192019927||3000||65||3500||1500||200 - 500||3500||9000||195.0|
1 Measured on bright drawn material St 37
