The wide range of Yale lashing systems is available for a many capacities:

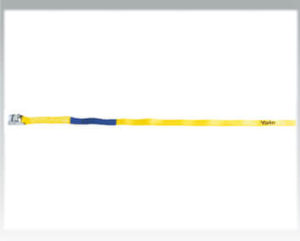

- The cambuckle lashing ZGK-25-125 is 25 mm wide and has a lashing capacity of max. 125 daN. It is available in the standard lengths of 4 m and 6 m.

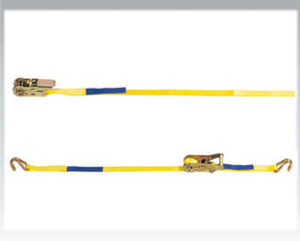

- The ratchet lashing ZGR-25-250 with a lashing force of max. 250 daN and ZGR-25-500 with a lashing force of max. 500 daN are also 25 mm wide and also available in 4 m and 6 m lengths.

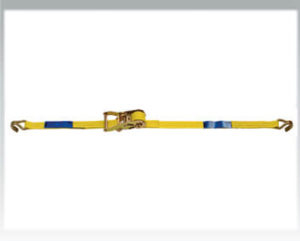

- The ratchet lashing ZGR-35-1000 with a lashing force of max. 1000 daN and a width of 35 mm is available in 6 m or 8 m length.
- The ratchet lashing ZGR-50-2000 with a lashing force of max. 2000 daN and a width of 50 mm are available in 8 m or 10 m lengths.

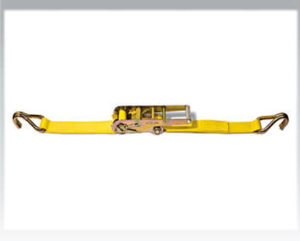

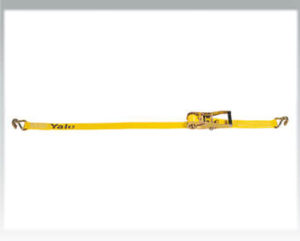

- The ratchet lashing ZGR-50-2500 has a maximum lashing force of 2500 daN and are also available in 8 m or 10 m lengths, while the ratchet lashing ZGR-75 -5000 with a lashing force of max. 5000 daN is available in 2 m or 4 m are available.

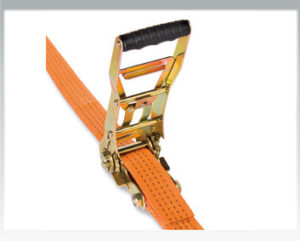

- The ratchet lashing ZGR-XL-50-2500 or ZGR-XLZ-50-2500 have a long lever ratchet with precise interlocking. While the ZGR-XL models have a long lever ratchet with a device for controlled release, the ZGR-XLZ models have a long lever push ratchet with a device for controlled release. The standard lengths are 8 m and 10 m. All lashing straps are also available in a 2-piece version with twisted snap hooks, claw hooks or chassis hooks. Other lengths are available on request.
